G-1

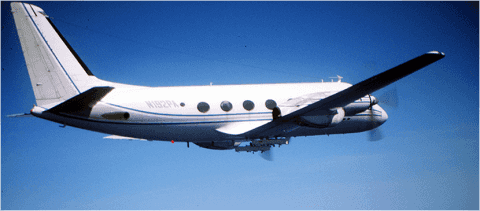

Gulfstream-159

The Passive-Cavity Aerosol Spectrometer Probe (PCASP) is an in situ airborne optical spectrometer manufactured by Droplet Measurement Technologies. It detects light scattered by particles to determine aerosol size distribution and concentration within the 0.1 to 3.0 μm range. PCASP operates at a wavelength of 632 nm and typically samples at 10 Hz.

Generic-Atmospheric State (Gen-AtmsState) refers to non-specific instruments on a platform used for measurements of atmospheric state parameters. These are typically in situ sensors that measure temperature, pressure, humidity, and wind speed/direction. Types of atmospheric state instruments include thermometers, hygrometers, barometers, and anemometers.

The King Probe is an in situ airborne cloud instrument developed by Warren King (Commonwealth Scientific and Industrial Research Organisation) and manufactured by Particle Measuring Systems (PMS) and Droplet Measurement Technologies (DMT). The King Probe measures cloud liquid water content (LWC) by detecting the heat released when water droplets vaporize. It operates at a constant temperature of approximately 100°C and has a data output rate of 1 to 10 Hz. The probe is commonly used in studies of cloud microphysics and aircraft icing.

The Cloud Aerosol and Precipitation Spectrometer (CAPS) is an in situ airborne spectrometer manufactured by Droplet Measurement Technologies. It combines the Cloud Imaging Probe (CIP), the Cloud and Aerosol Spectrometer (CAS), and the Hotwire Liquid Water Content (LWC) Sensor into a single instrument. CAPS measures the size distribution of aerosol, cloud, and liquid droplets for particles between 50-1600 μm in size, with a time resolution of 1 Hz. It can also capture images of cloud particles and provide measurements of temperature, pressure, and LWC.

The Cloud Imaging Probe (CIP) is an in situ airborne optical array probe manufactured by Droplet Measurement Technologies. It captures cloud particle images by recording shadows as particles pass through a laser. Additionally, it provides data on particle size distribution and cloud liquid water content. CIP typically has a resolution of 25 μm and can measure particles ranging from 12.5 μm to 1.55 mm.

Generic-Chemistry Related Sensors (Gen-Chemistry) refers to non-specific instruments on a platform used for atmospheric chemistry measurements. These are typically in situ analyzers that measure various chemical compounds such as trace gases, halocarbons, volatile organic compounds, nitrates, aerosols, and other chemical species. Measurements can include mixing ratio, composition, particle size, optical properties, and particle size distribution.

The Proton Transfer Mass Spectrometer (PTR-MS) is an in situ spectrometer used both on aircraft and ground, developed by the University of Innsbruck in Austria. It detects volatile organic compounds (VOCs) without the need for sample preparation at very low concentrations. PTR-MS employs chemical ionization mass spectrometry, enabling quick and highly sensitive VOC detection. It has a signal integration time ranging from 0.5 to 1 second.

The Whole Air Sampler (WAS) is an airborne in-situ instrument that collects air samples for analyzing trace gases, such as nonmethane hydrocarbons (NMHCs), halocarbons, alkyl nitrates, and various sulfur compounds found in the troposphere. Air samples collected by the WAS are then analyzed using gas chromatography and mass spectrometry to identify the gases present. The WAS collects samples every minute, allowing scientists to get a clear picture of the environment's chemical composition as research aircraft pass through.

Nephelometers are in situ optical sensors that can be airborne or ground-based. They measure the total scattering and backscattering of aerosol particles in the atmosphere. Nephelometers operate at three wavelengths: 450 nm, 550 nm, and 700 nm, with a typical time resolution of 1 Hz.

NOx/NOxy is an in situ chemiluminescence instrument that measures nitrogen oxides and ozone in the atmosphere. It offers a spatial resolution better than 100 meters at typical DC-8 research flight speeds. NOx/NOxy can be used on ground-based, airborne, and shipborne platforms, enabling it to support various atmospheric chemistry and air quality studies.

The Cloud and Aerosol Spectrometer (CAS) is an in situ airborne spectrometer manufactured by Droplet Measurement Technologies. It measures light scattering at 658 nm to determine aerosol and cloud particle size distributions from 0.51 to 50 μm. It also provides measurements of the refractive index and particle shape. CAS has a typical time resolution of 1 Hz and can measure concentrations greater than 1,000 particles per cubic meter.

Condensation Particle Counters (CPCs) are in situ sensors that measure aerosol particle concentrations. CPCs determine aerosol levels by condensing fluid onto particles, causing them to grow to sizes detectable by optical scattering. Typically, CPCs can detect particles ranging from 7 nm to 3 μm, measure concentrations up to 100,000 particles per cubic centimeter, and provide readings every second. CPCs are manufactured by TSI Incorporated and can be used on airborne, shipborne, and ground-based platforms.

The Tandem Differential Mobility Analyzer (TDMA) is an in situ airborne and ground-based analyzer that measures the physical properties of aerosol particles, such as size distribution and concentration. It can measure particles in the size range of 0.013 to 0.75 mm with a size resolution of 0.013 mm at 0.2 mm. The TDMA is often combined with an Aerodynamic Particle Sizer (APS) to enable measurements of particles in the submicron range. A typical measurement sequence of TDMA takes approximately 45 minutes to complete.

The Multifilter Rotating Shadowband Radiometer (MFRSR) is a ground-based passive radiometer used to measure the global and diffuse components of solar irradiance. It measures solar irradiance across six narrowband channels and one broadband channel. The nominal wavelengths of the narrowband channels are 415, 500, 615, 673, 870, and 940 nm. MFRSR has a typical sampling interval of 20 seconds and takes measurements at four different shadowband positions: nadir, first side-band, sun-blocked, and second side-band. MFRSR is deployed across several of the Department of Energy’s Atmospheric Radiation Measurement (ARM) User Facility sites.

The Aerosol Mass Spectrometer (AMS) is an in situ spectrometer developed by Aerodyne Research. It employs quadrupole mass spectrometry to measure aerosol chemical composition and properties. It can detect particles ranging from 40 nm to 1 micron in size and has a time resolution of up to 10 Hz. It can be installed on aircraft, research vessels, mobile laboratories, or other ground-based platforms.

The Single Particle Soot Photometer (SP2) is an in situ laser-induced photometer developed by Droplet Measurement Technologies. SP2 measures the black carbon (BC) mass in individual aerosol particles, along with their optical and physical properties that contain BC. The device detects aerosol particles with diameters of 200-400 nm and can analyze up to 25,000 particles per second. It operates at a sampling rate of 1 Hz and uses a wavelength of 1.06 μm. It can be used on airborne or ground-based platforms and paired with a Humidified-Dual SP2 (HD-SP2).

The Particle Into Liquid Sampler (PILS) is an in situ aerosol sampler manufactured by Brechtel Manufacturing Inc. PILS can be used by both ground-based and airborne platforms to gather continuous data on ambient aerosol bulk composition. The particles collected by PILS are mixed with saturated water vapor to form droplets that are analyzed by either an ion chromatograph (IC) or a total organic carbon detector (TOC). PILS can detect aerosol particles ranging from 70 nm to 2.5 μm in size and offers a time resolution of 3 minutes for airborne measurements and 15 minutes for ground-based measurements.
